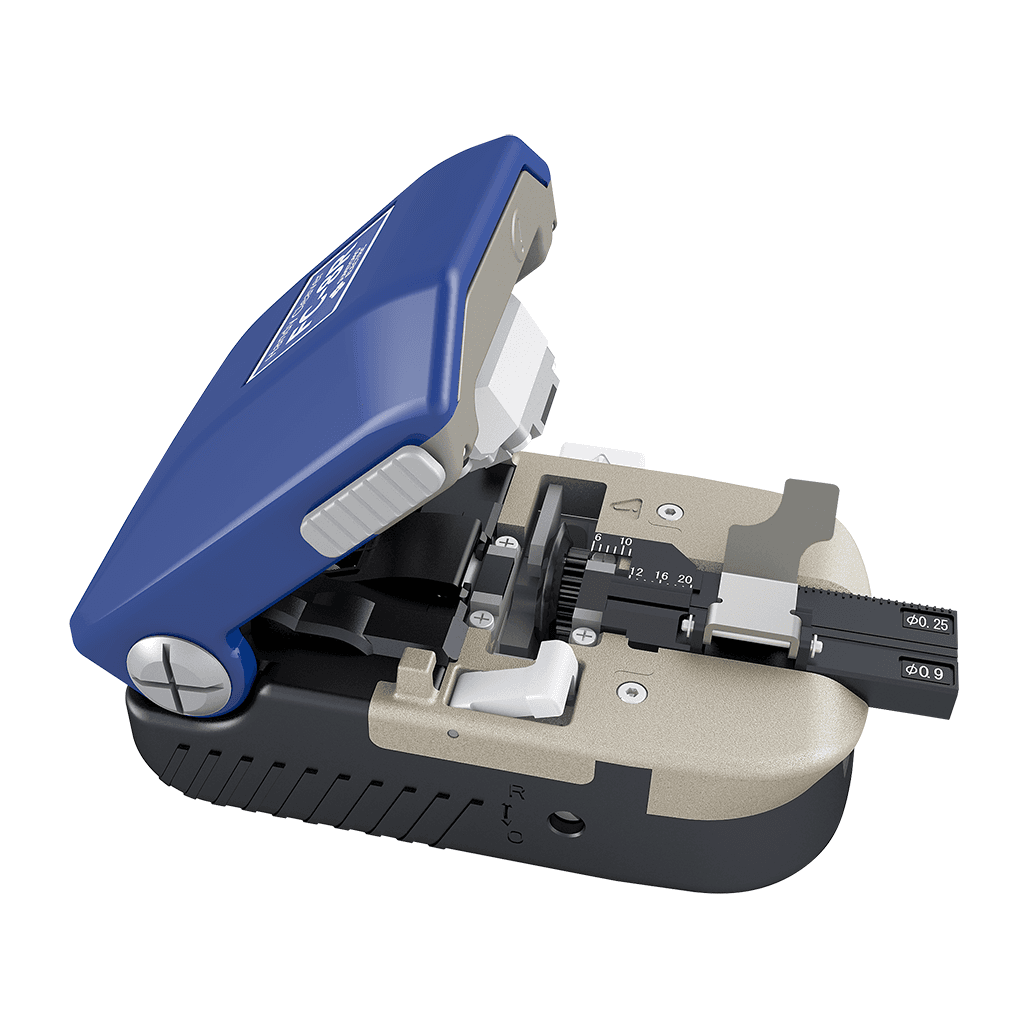

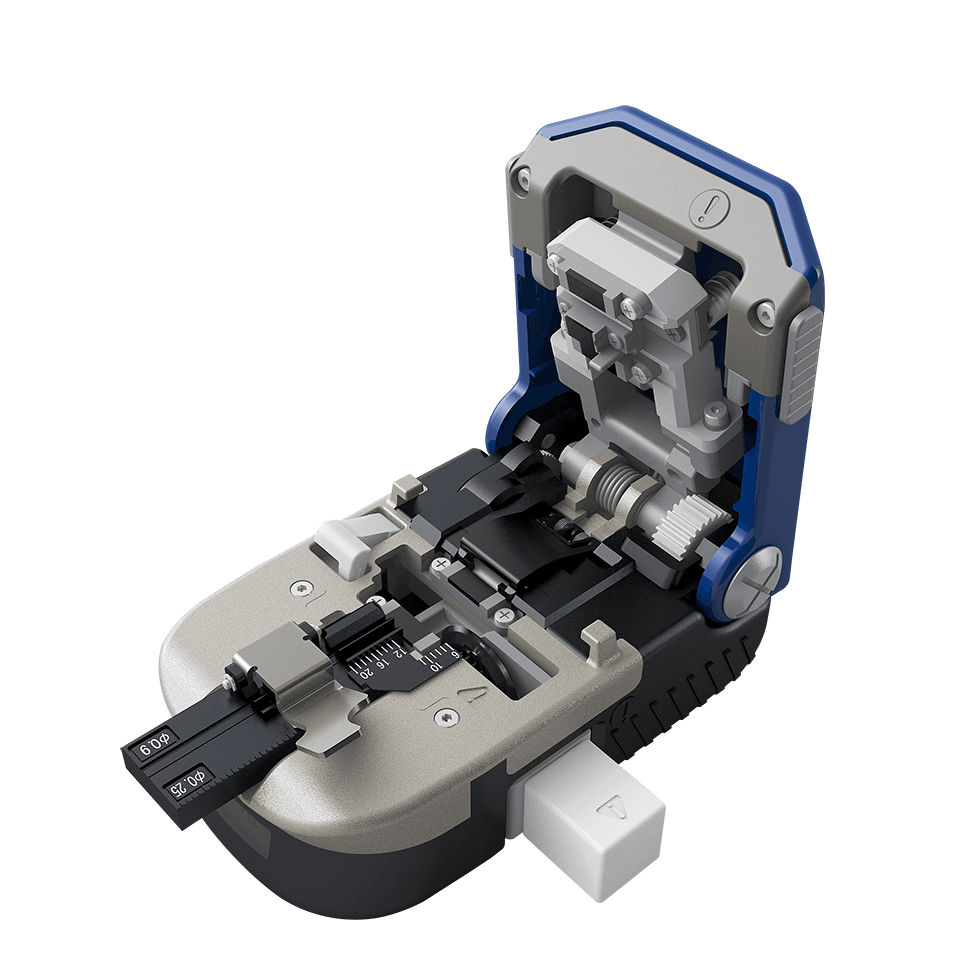

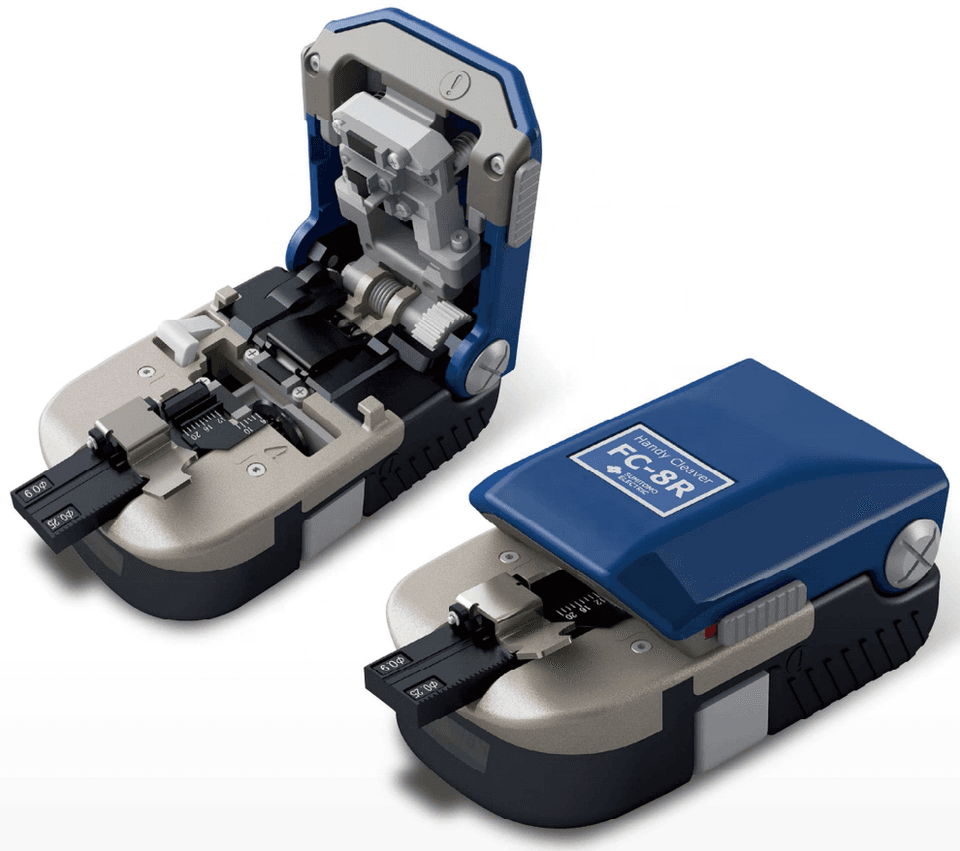

Sumitomo TYPE-FC-8R Ribbon Fiber Cleaver
High-precision ribbon cleaver for mass fusion splicing
The Sumitomo TYPE-FC-8R is a high-precision ribbon fiber cleaver built for 4-, 8- and 12-fiber mass-fusion workflows. A hardened automatic blade mechanism and integrated fiber-chip collection deliver consistently low cleave angles over the life of the blade, preparing ribbon ends for downstream mass-fusion splicers in data-center and backbone builds.
- 01Supports 4 / 8 / 12-fiber ribbon cleaving
- 02Automatic blade rotation and advance for consistent angle across blade life
- 03Integrated fiber-chip collector for safer, cleaner field work
- 04Pairs with Sumitomo T-57M12 / Q102-M12 mass-fusion splicers
- Authentic
- Factory warranty
- Global
- DHL / FedEx / UPS
- Support
- HKT 09–18, Mon–Fri
Specifications
Technical specifications.
Core parameters only. Ask for the full datasheet — we stock both original manufacturer sheets and our own field-tested notes.
- Fiber type
- 4 / 8 / 12-fiber ribbon (125 µm cladding)
- Cleave angle (typical)
- ≤ 0.5°
- Cleave length
- 10 – 20 mm
- Blade life (typical)
- ~48,000 cleaves
