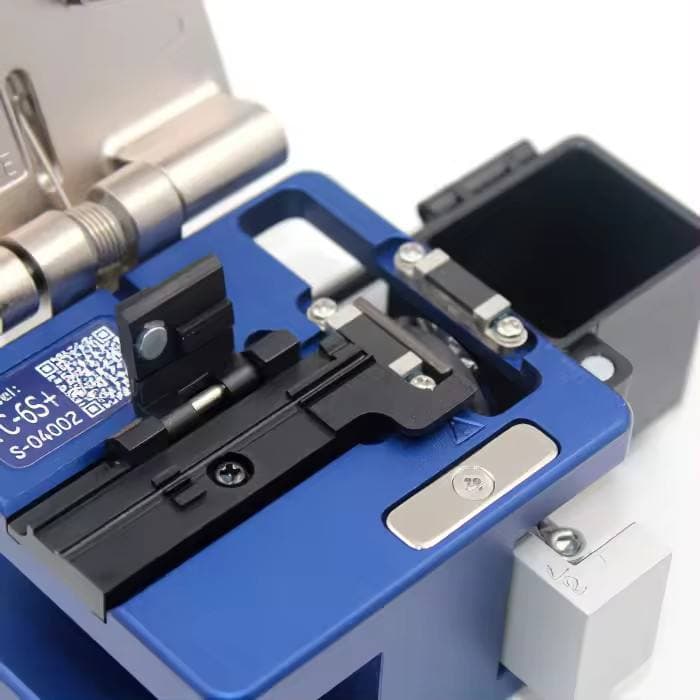

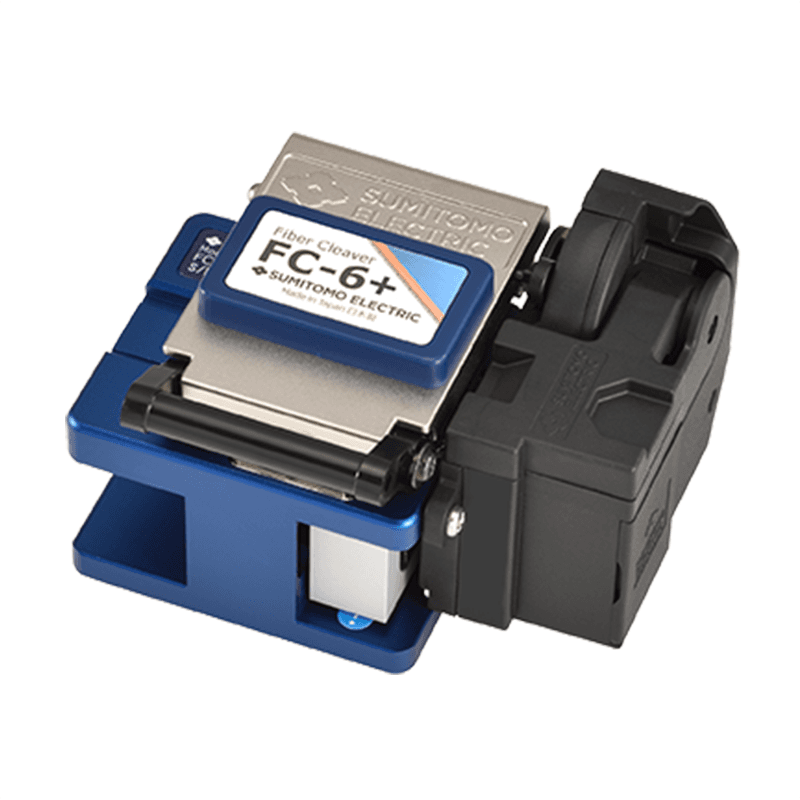

Sumitomo TYPE-FC-6S+ Fiber Cleaver
High-precision field cleaver for FTTH splicing
The Sumitomo TYPE-FC-6S+ is a compact high-precision fiber cleaver engineered for low-loss fusion splicing. Automatic blade rotation and advance, together with an integrated fiber-chip collector, deliver consistent cleave angles over tens of thousands of field cleaves with minimal operator intervention.

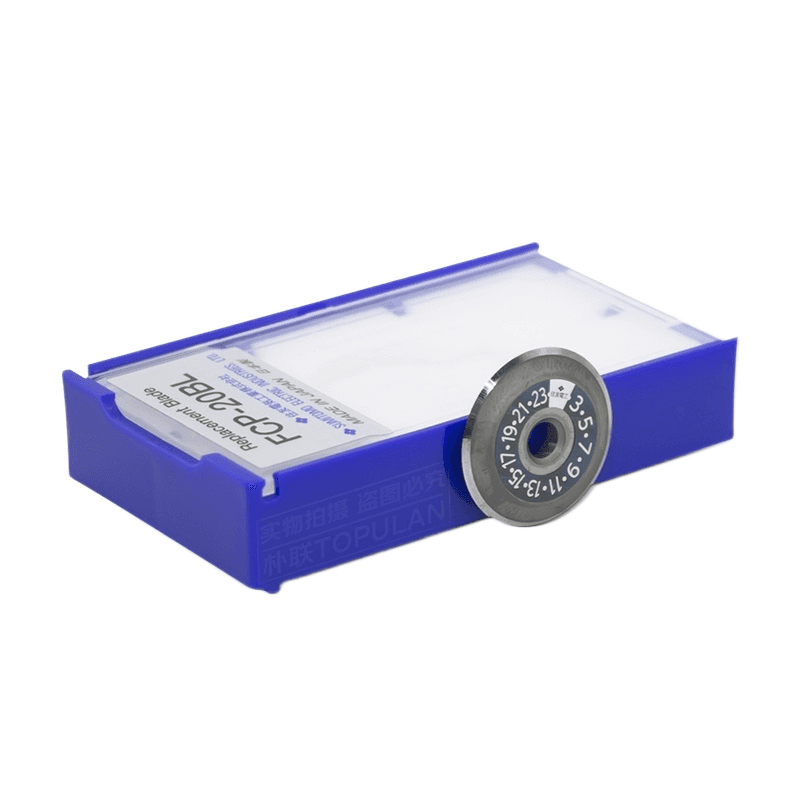

- 01Auto blade rotation and advance — consistent cleave angle across blade life
- 02Integrated fiber-chip collector for safer, cleaner field work

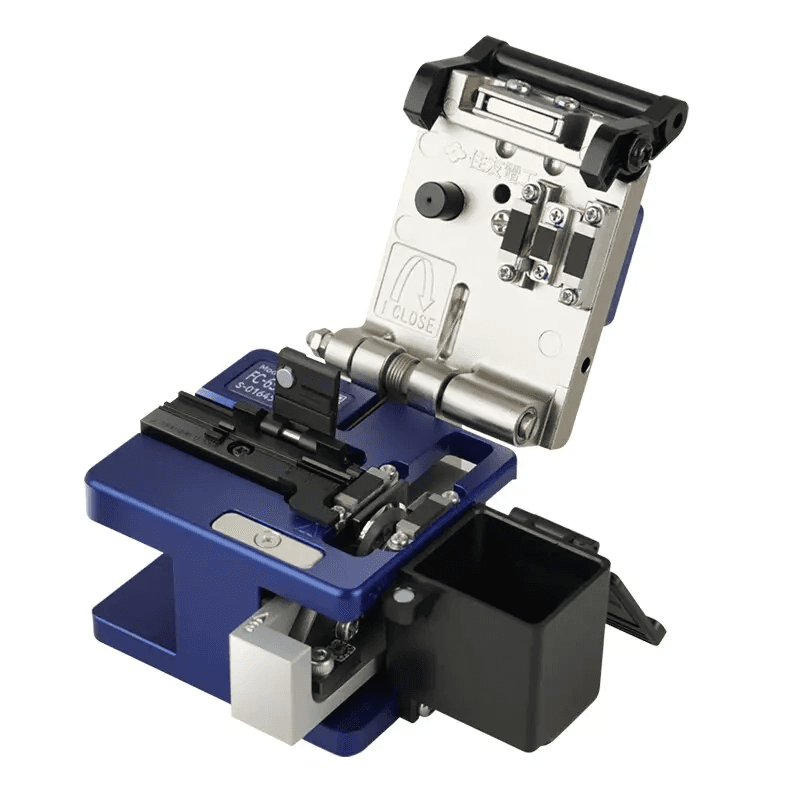

- 03Single-action fiber loading for fast FTTH handling
- 04Pairs with Sumitomo T-72C+ / Q101 splicer workflow
- Authentic
- Factory warranty
- Global
- DHL / FedEx / UPS
- Support
- HKT 09–18, Mon–Fri
Specifications
Technical specifications.
Core parameters only. Ask for the full datasheet — we stock both original manufacturer sheets and our own field-tested notes.
- Fiber type
- 125 µm cladding, 250 / 900 µm coating
- Cleave angle (typical)
- ≤ 0.5°
- Cleave length
- 5 – 16 mm
- Blade life (typical)
- ~60,000 cleaves
