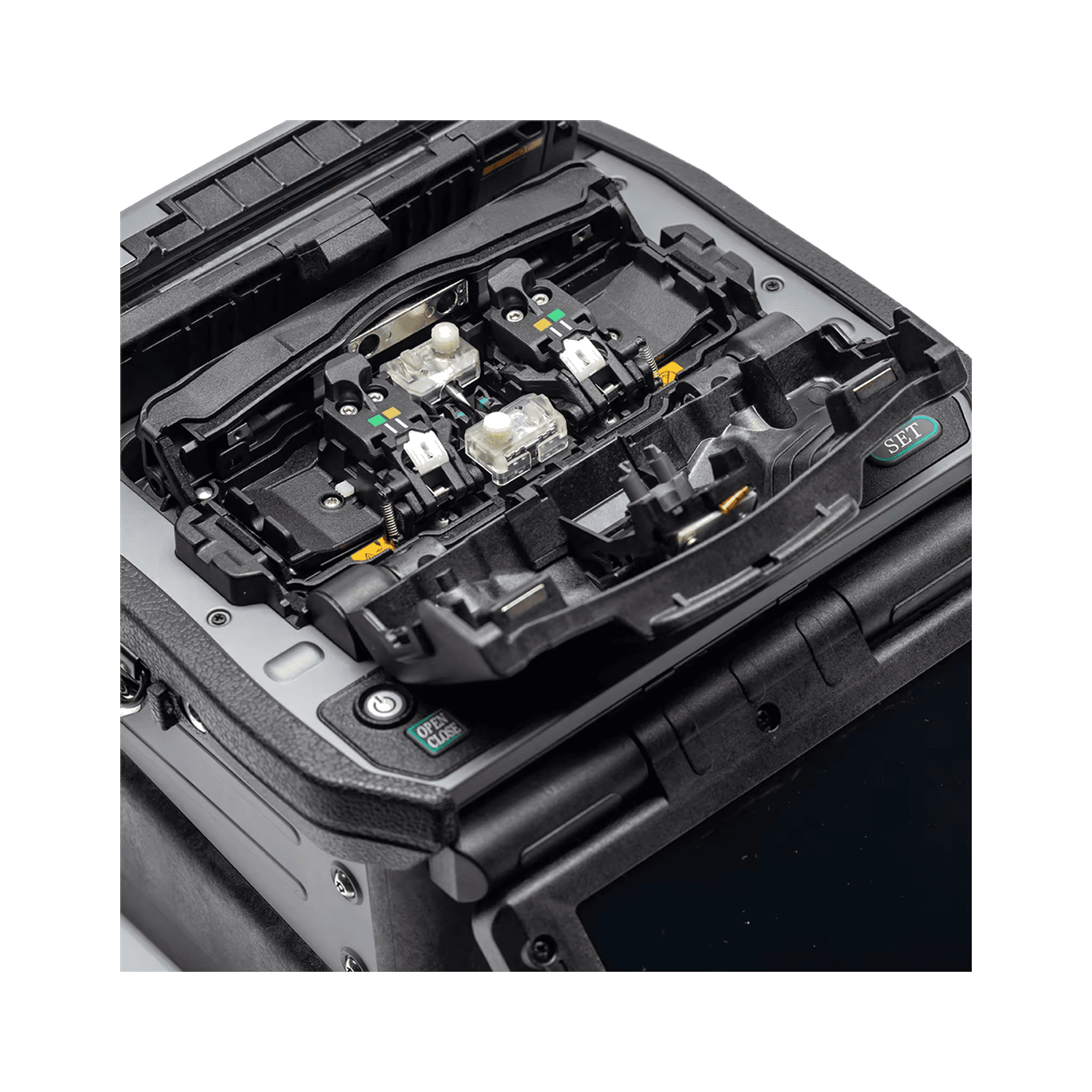

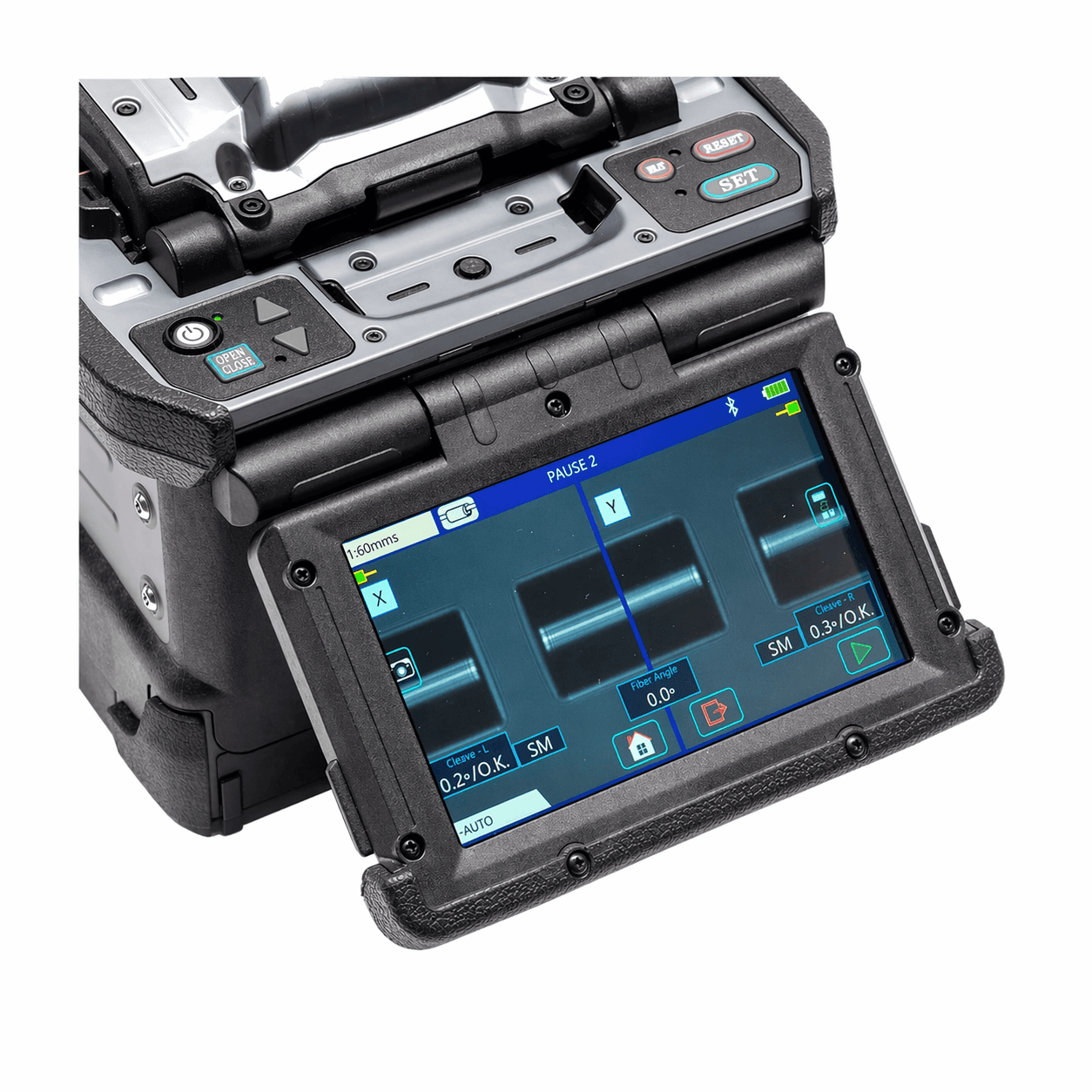

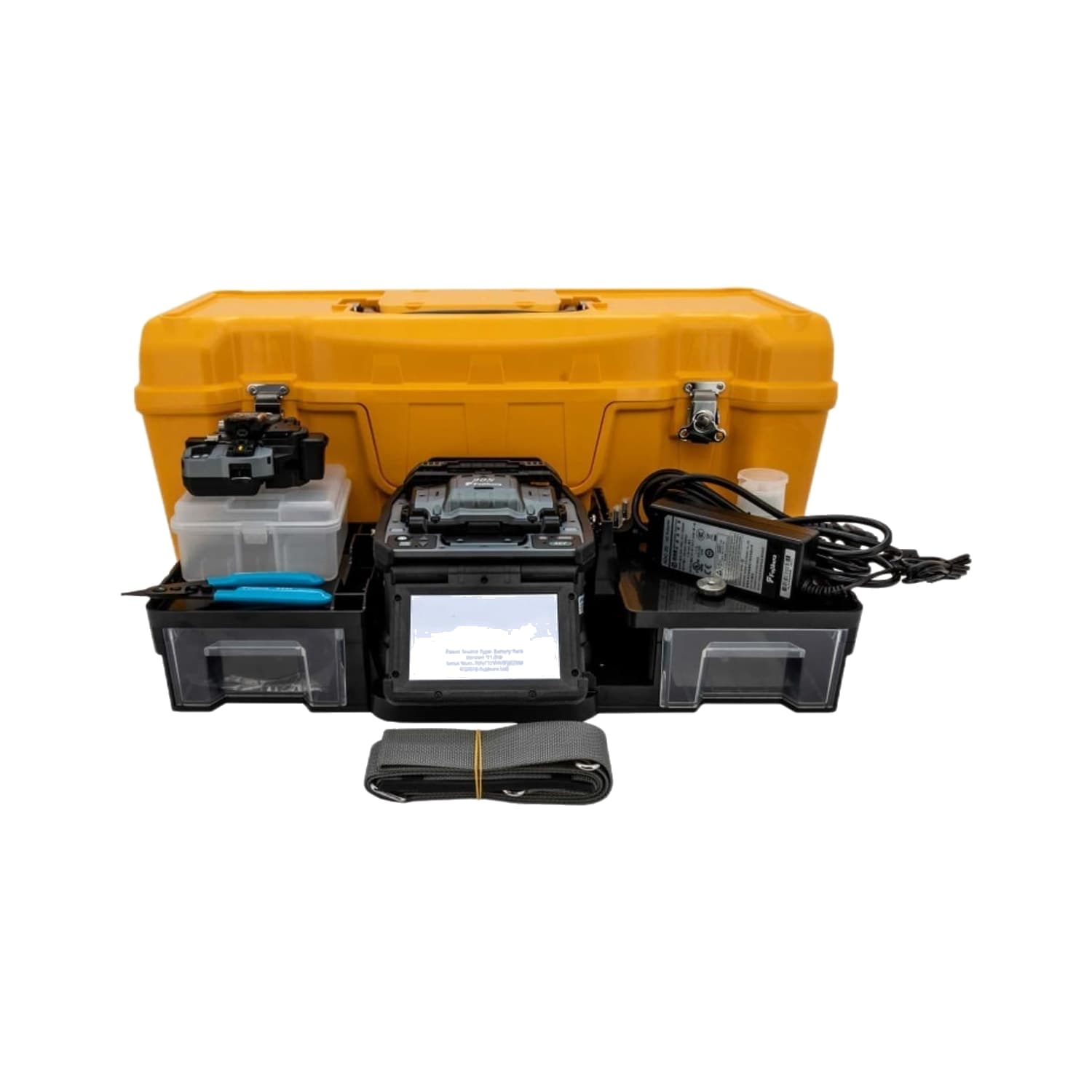

Fujikura 90S+ Fusion Splicer
Flagship core alignment splicer with dual cameras
The 90S+ is Fujikura's flagship core alignment fusion splicer. Dual independent cameras deliver the fastest, most precise core alignment ever achieved by Fujikura, while automatic splice-start and sleeve loading keep installers productive through long shifts.
- 01Dual independent cameras for the fastest core alignment
- 02Automatic splice start and automatic sleeve loading
- 03Industry-leading 7 s splice / 14 s heat typical cycle
- 04Shock, dust and water resistant field-ready chassis
- Authentic
- Factory warranty
- Global
- DHL / FedEx / UPS
- Support
- HKT 09–18, Mon–Fri
Specifications
Technical specifications.
Core parameters only. Ask for the full datasheet — we stock both original manufacturer sheets and our own field-tested notes.
- Alignment method
- Active core alignment
- Splice time (typical)
- 7 s
- Heat time (typical)
- 14 s
- Typical splice loss (SMF)
- 0.02 dB
- Applicable fibers
- SMF / MMF / DSF / NZDSF
- Battery capacity
- Up to 400 splice + heat cycles
